AC100-277V 2ft 4ft 6ft Slim LED Tri-proof Light / LED Vapor Tight Light Factory Direct Shipment with 0-10V, PWM, DALI dimming options IK69 LED Shatterproof Fixture

2FT/4FT/5FT/6FT Slim LED Tri-proof Light
15W 20W 30W 36W 40W 50W 70W LED Tri-proof Fixture
3000K/4000K/5000K/6000K LED Vapor Tight Batten
Dimmable: 0-10V / Dali / Zigbee Dimming LED Vapor Light
Sensor: Microwave Motion Sensor LED Vapor Tight Light
Emergency LED Vapor Tight Light with 1.5H/2H/3H Duration
LED Vapor Tight Light with CE UL ETL DLC Certified

LED Vapor Tight Light Specifications

Slim LED Tri-proof Light Specifications

Name	General Specifications
Input voltage	AC200-240V/AC100-277V 50/60Hz
LED Driver	Constant Current LED Driver (CE/TUV/UL or Meanwell)
PF	>0.9
THD	<15%
LED Type	Lumileds/Samsung/Epistar SMD LED
Colour Rendering Index	Ra>80
SCDM	<5
Colour Temperature	3000K, 4000K, 5000K, 5700K, 6000K, 6500K
Luminous Efficiency	120lm/W (140lm/W available)
Beam Angle	120°
Housing Material	Extruded Alumium Base + PC Cover
Installation	Suspension / Surface mount
IP & IK Rating	IP65 & IK08
Optional Functions	0/ 1-10V \| Dali \| Microwave Sensor \| Photocell \| Emergency
Working Temperature	-25℃~50℃
Certificate	TUV, SAA, CB, CE, RoHS
Warranty	3-Year or 5-Year

Name	Model	Wattage	Dimension	Dimension	Weight
20W Slim Vapor Light	SO-TPL-06S20W	20W	2400LM	L600W84H46mm	0.8KG
30W Slim Vapor Light	SO-TPL-09S30W	30W	3600LM	L900W84H46mm	1.2KG
40W Slim Vapor Light	SO-TPL-12S40W	40W	4800LM	L1200W84H46mm	1.5KG
50W Slim Vapor Light	SO-TPL-12S50W	50W	6000LM	L1200W84H46mm	1.5KG
60W Slim Vapor Light	SO-TPL-15S60W	60W	7200LM	L1500W84H46mm	1.9KG
70W Slim Vapor Light	SO-TPL-18S70W	70W	8400LM	L1800W84H46mm	2.4KG

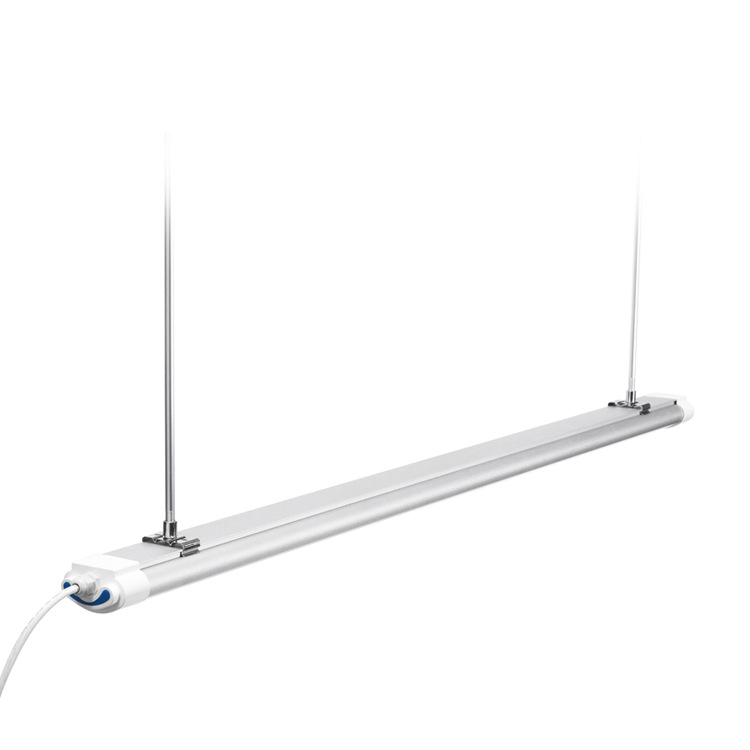

LED Tri-proof Light Introduction

SuperONE Slim LED Vapor Tight Light or LED tri-proof light fixture is designed with an ultra-slim extruded aluminum plate as heatsink and opal polycarbonate as diffuser. The sleek and slim design is ideal for low profile space where requires a durable and energy-efficient solution. With IP65 weatherproof treatment, it’s can be used for both indoor & outdoor applications to protect against dust, spray, humidity, and water.

Available in 600mm/1200mm/1500mm/1800mm (2ft/4ft/5ft/6ft) length, it covers a wide range of wattage from 20 watts to 70 watts. It utilizes high lumen SMD LED to deliver at a powerful 120-140 lumens per watt efficacy. For example, 70W is able to deliver 9800lm output with outstanding visibility and bright, reliable illumination, which can replace HID linear fixture up to 200W.

Fully-sealed with an extruded aluminum housing and water-tight PG end caps, the Vapor Tight Fixture helps simplify installation on a wall or ceiling in just minutes. With surface mounted brackets and suspension kits, customers can make installation at ease within minutes with pre-assembled cables. The linear LED vapor tight light is suitable to use at corridors/hallways, storage areas, stairways, parking lots, gas stations, car wash/auto body operations etc.

SuperONE Lighting is a professional manufacturer of LED Tri-proof Light & LED Vapor Tight manufacturer from Shenzhen, China, offering a wide range of waterproof lighting products. With company philosophy “Driving Innovation, Delivering Value”, SuperONE is committed to delivering top-performing, energy-efficient lighting to customers & partners all over the world.
