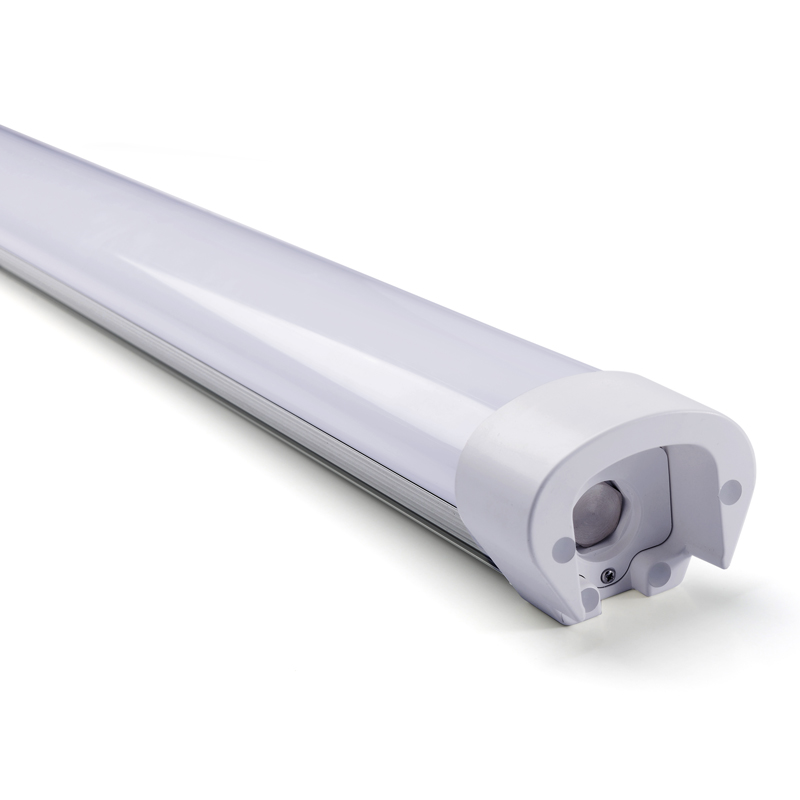

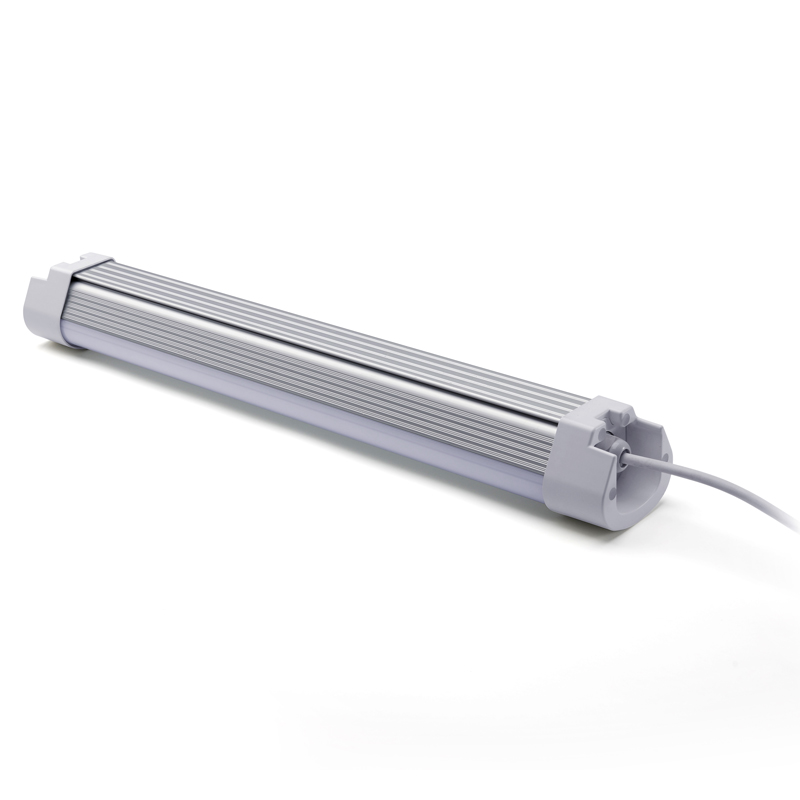

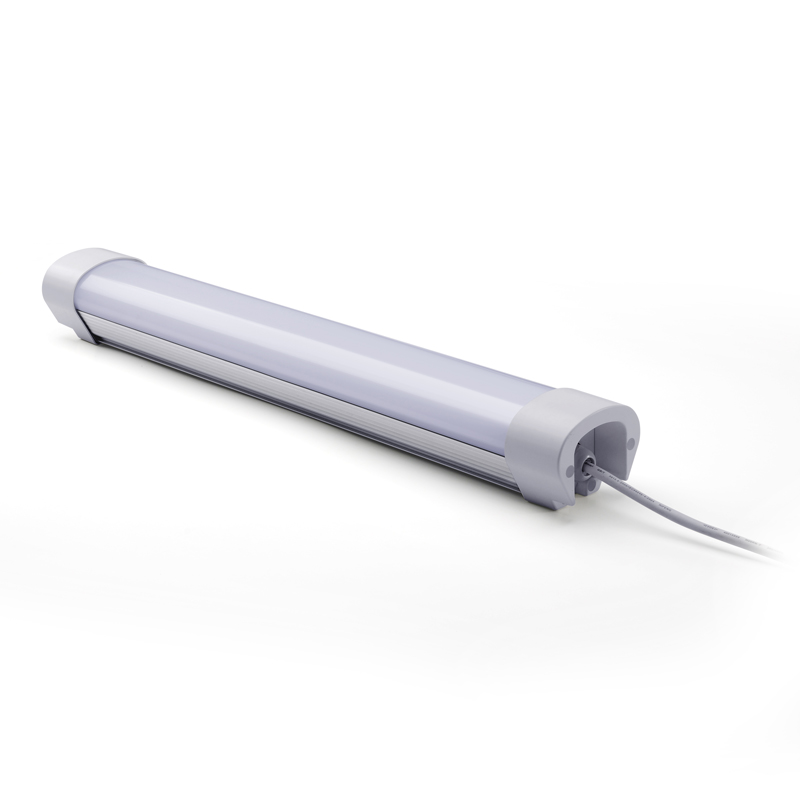

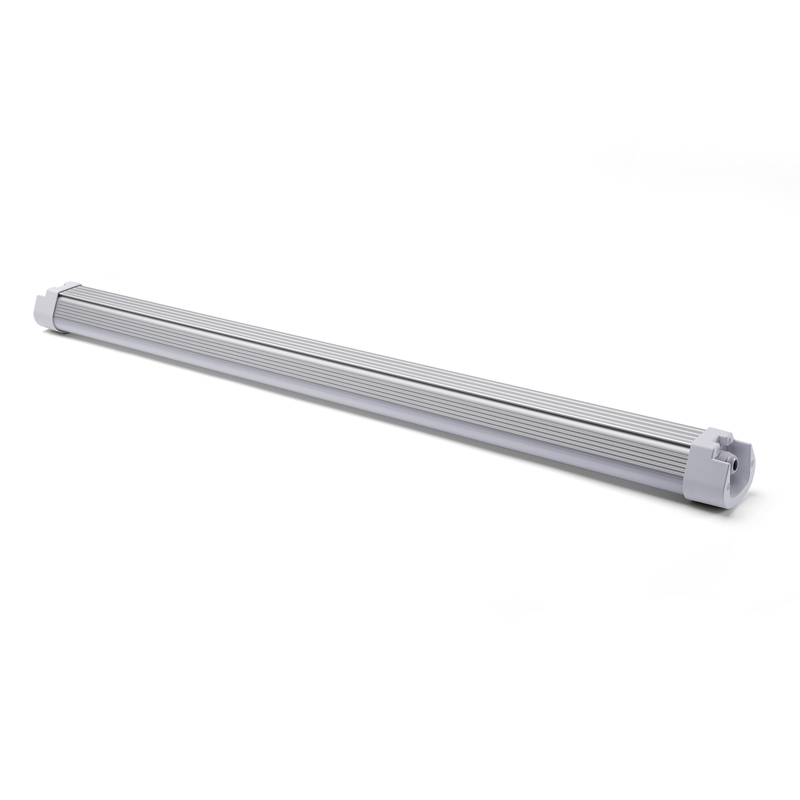

Pendatn LED Tri-proof Light 20W/40W/60W IP66 IK08 Linkable
LED Vapor Tight Light with Seamless Connection 5 Years Warranty
- Length: 2FT/4FT/5FT
- Wattage: 20W 40W 60W
- Installation: Surface Mount / Suspended
- Sensor: Microwave Motion Sensort
- Dimmable: 0-10V / PWM / Dali / Zigbee Dimming
- Emergency: 1.5H/2H/3H Duration with Battery Pack
| Name | LED Tri-proof Light Specifications |
|---|---|
| Input voltage | AC200-240V/AC100-277V 50/60Hz |
| LED Driver | Constant Current LED Driver (CE/TUV/UL or Meanwell) |
| PF | >0.9 |
| THD | <15% |
| LED Type | Lumileds/Samsung/Epistar SMD LED |
| Colour Rendering Index | Ra>80 |
| SCDM | <5 |
| Colour Temperature | 3000K, 4000K, 5000K, 5700K, 6000K, 6500K |
| Luminous Efficiency | 130lm/W (150lm/W available) |
| Beam Angle | 120° |
| Housing Material | Extruded Alumium Base + PC Cover |
| Installation | Suspension / Surface mount |
| IP & IK Rating | IP65 & IK08 |
| Optional Functions | 0/1-10V | Dali | Microwave Sensor | Photocell | Emergency |
| Working Temperature | -25℃~50℃ |
| Certificate | TUV, SAA, CB, CE, RoHS |
| Warranty | 3-Year or 5-Year |
| Name | Model | Wattage | Dimension | Dimension | Weight |
|---|---|---|---|---|---|
| 20W Tri-proof Light | SO-TPP-06A20W | 20W | 2400LM | L600*W95*H76mm | 1.3KG |
| 40W Tri-proof Light | SO-TPP-12A40W | 40W | 4800LM | L1200*W95*H76mm | 2.1KG |
| 50W Tri-proof Light | SO-TPP-15A50W | 50W | 6000LM | L1500*W95*H76mm | 2.3KG |
20W/40W/60W IP65 Waterproof LED Tri-proof Lights, 2FT/4FT/5FT Seamless Linkable LED Vapor Lights with Waterproof, Dust-proof & Corrosion-proof Design, Surface Mount & Pendant Installation for Parking Lot, Warehouse, Factory, Supermarket & Garage etc.
This pendant linkable IP65 LED tri-proof lights are designed with waterproof, dust-proof & corrosion-proof features for wet & damp location. Made of aluminum base with PC cover, they are dust tight, heavy-duty, super-bright alternatives to traditional tube and strip light fixtures in in harsh environments. By adding additional features like microwave sensor, 0~10V, DALI, TRIAC dimming and emergency, this vapor proof LED linear fixture is capable of using in most indoor & outdoor applications.
The linkable design provides seamless connection for a long distance between the fixtures to minimize power cords for a clean look. All connectors and plugs are double insulated to make sure safety and reliability. By using high flux Epistar SMD LED, this LED Triproof light delivers 100-120 lumen per watt efficacy, replacing up to 150W traditional linear fixture. With brackets for surface mount or suspension kit for pendant installation, they are perfect for warehouse lighting, parking garage lighting, supermarket lighting, canopy lighting and more. Because they are shatterproof, the lights are also suitable for food processing centers.
SuperONE Lighting is a professional manufacturer of LED Tri-proof Light & LED Vapor Tight manufacturer from Shenzhen, China. With company philosophy “Driving Innovation, Delivering Value”, SuperONE is committed to delivering top-performing, energy-efficient lighting to customers & partners all over the world.
- 20W/40W/60W IP65 Waterproof LED Tri-proof Lights
- Water-proof, dust-proof, damp-proof, vapor-proof LED linear lights
- Different size are available, 0.6m, 1.2m and 1.5m vapor proof lights
- Linkable design to enable seamless light connection with no dark spot
- Aluminum heat sink with superior heat dissipation, tough & durable
- High quality shockproof polystyrene cover with strong capacity
- Epistar 2835 SMD LED with excellent efficacy 100-120 Lm/W
- Single-end wiring for standard input, double-end wiring for multiple links
- Stainless quick clips provided for surface mount purpose
- Suspension kit can order separately for pendant installation
- Universal AC100-277V integral driver with surge protection, PF>0.9
- 1-10V dimming / Dali Dimming / Emergency / Microwave Sensor
- Warehouse lighting
- Workshop lighting
- Stadium lighting
- Refrigerator lighting
- Parking garage lighting
- Gas station lighting
- Supermarket lighting
- Food & beverage lighting
- Commercial kitchen lighting
- Manufacturing facilities lighting
Ceiling Mount / Suspended LED Vapor Tight Fixture
The Classic T Series LED Tri-proof Light can be Ceiling or Wall Mounted with brackets and expansion screws, as well as Suspended with metal rods or wire ropes, which makes the fixture versatile for both low profile & high ceiling at indoor & outdoor areas.
Linkable LED Tri-proof Light Fixture
Our unique design enables customers to link or connect those fixures in a line and run from one power source, which can save your installation wiring work. Multiple fixtures can be connected in a row to create a daisy chain system by linking one fixture to another directly, or through electric cable.

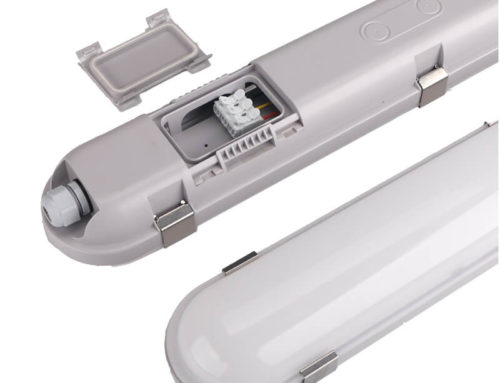

Durable Vapor Proof Light Fixture
When it comes to lighting, certain environments demand extra protective measures. Here’s a few reasons you can trust the our vapor tight LED light in your harsh environment.
- Single piece injection molded polycarbonate body, high resistant, 180° bendable without crack
- PG13.5 glands on two ends to make the the fixture with IP65 rating, protection from dust & water
