50W/100W/150W/200W /250W /300W/400W/500W Modular Linear LED High Bay Light & Low Bay Light with Light Direction Adjustable
- Length: 1FT 2FT 3FT 4FT 5FT
- Wattages: 50W/100W/150W/200W/250W/300W/400W/500W
- CCT: 3000k, 4000k, 5000k, 5700k, 6000k, 6500k
- Main Material: Aluminum + PMMA lens
- Input Voltage: AC100-277V, AC200-240V, 50/60HZ
- Optional Functions: Microwave, Dimmable, Emergency etc
- Certificates: ETL, FCC, CE, ROHS, LVD, EMC, SAA, SASO
| Name | General Specifications |
|---|---|
| Input voltage | AC200-240V/AC100-277V 50/60Hz |
| LED Driver | Constant Current LED Driver (CE/TUV/UL or Meanwell) |
| PF | >0.9 |
| THD | <15% |
| LED Type | Lumileds/Samsung/ Epistar SMD LED |
| Colour Rendering Index | Ra>70 |
| SCDM | <5 |
| Colour Temperature | 3000K, 4000K, 5000K, 5700K, 6000K, 6500K |
| Luminous Efficiency | 130lm/W (150lm/W available) |
| Beam Angle | 60°/90°/60×120°/60×90°/30×70°/155×80° |
| Housing Material | Extruded Aluminum Alloy |
| Installation | Suspension / Surface mount / Rotating mount |
| IP & IK Rating | IP65 & IK10 |
| Optional Functions | 1-10V | Dali | Microwave Sensor | Photocell | Emergency |
| Working Temperature | -25℃~50℃ |
| Certificate | TUV, SAA, CB, D-Mark, CE, RoHS |
| Warranty | 3-Year or 5-Year |
| Name | Model | Wattage | Dimension | Dimension | Weight |
|---|---|---|---|---|---|
| 50W Module LED High Bay | SO-HBL-M01-50W | 50W | 6500LM | L353*W115*H114mm | 2.0KG |
| 100W Module LED High Bay | SO-HBL-M02-100W | 100W | 13000LM | L620*W115*H114mm | 3.0KG |
| 150W Module LED High Bay | SO-HBL-M03-150W | 150W | 19500LM | L887*W115*H114mm | 4.1KG |
| 200W Module LED High Bay | SO-HBL-M04-200W | 200W | 26000LM | L1154*W115*H114mm | 5.2KG |
| 250W Module LED High Bay | SO-HBL-M05-250W | 250W | 32500LM | L1421*W115*H114mm | 6.2KG |
| 300W Module LED High Bay | SO-HBL-M06-300W | 300W | 39000LM | L947*W230*H173mm | 8.1KG |
| 400W Module LED High Bay | SO-HBL-M08-400W | 400W | 52000LM | L1214*W230*H173mm | 11.2KG |
| 500W Module LED High Bay | SO-HBL-M10-500W | 500W | 65000LM | L1481*W230*H173mm | 13.0KG |
SuperONE’s Module Series Linear LED High Bay is designed to replace 250W to 2000W halogen bulbs. Each module is with 50W power and can be added to 10modules maximum, making the modular LED High Bay up to 500W. It’s a powerful directed light solution that can accurately light up the aisles and racking areas of industrial facilities like warehouse, garage lighting, tunnel and general area lighting. Suitable for areas with a mounting height of 5 meters up to 30 meters.
The heatsink of Module Series Linear LED High Bay is made from high quality aluminum alloy material as heat sink body. And a larger area aluminum cover to protect internal structure from dust & dirt. Special power coating treatment offers a sturdy paint coating, making it strong corrosion resistance for years to come.
The powerful LumiLEDs 3030 LEDs have a yield of 150lm/ W efficacy and provide high-quality light distribution with secondary light distribution lens. The asymmetrically designed lens creates a rectangular beam pattern which is very perfectly covering the area where you need the light.
SuperONE Lighting is a professional LED Linear High Bay Light manufacturer from Shenzhen, China. With company philosophy “Driving Innovation, Delivering Value”, SuperONE is committed to delivering top-performing, energy-efficient lighting to customers & partners all over the world.
Features
- 50W-500W modular design LED High Bay & Low Bay Light
- 6063 extruded aluminum alloy with superior heat dissipation
- Silver color, black color spray powder coating with salt spray testing
- Anti-UV PMMA lens with various beam angles: 60°/90°/60×120°/60×90°/30×70°/155×80°
- Lumileds/Samsung/EpistarSMD LED, LM80, 50000hrs
- Overall luminous efficacy up to 130LPW / 150LPW
- 2OZ copper aluminum PCB for best thermal managements
- Universal 100-277V integral driver with surge protection
- IP65 & IK10 rating with high shock and vibration resistant

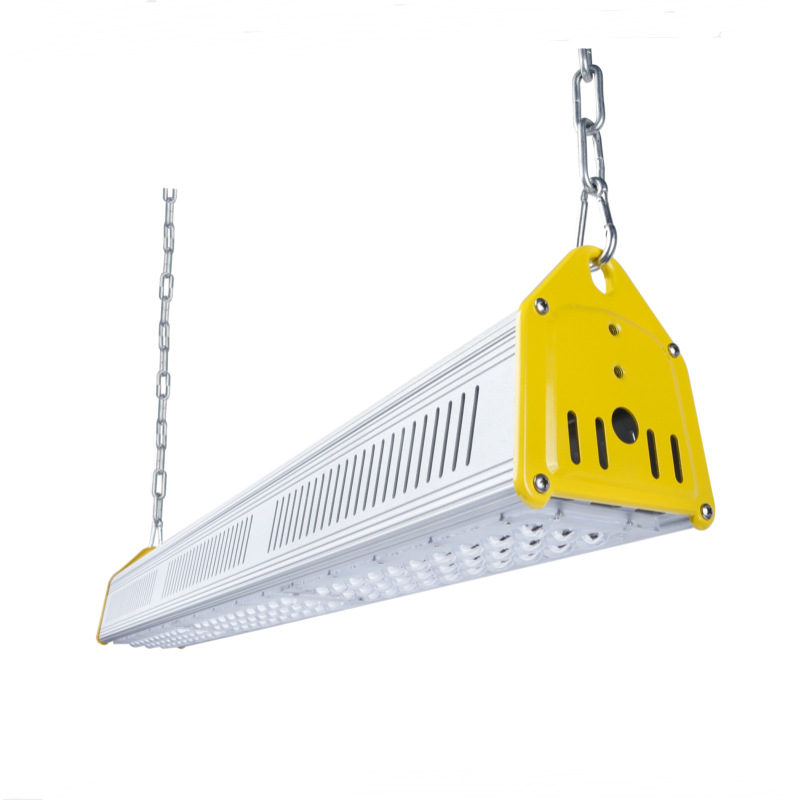

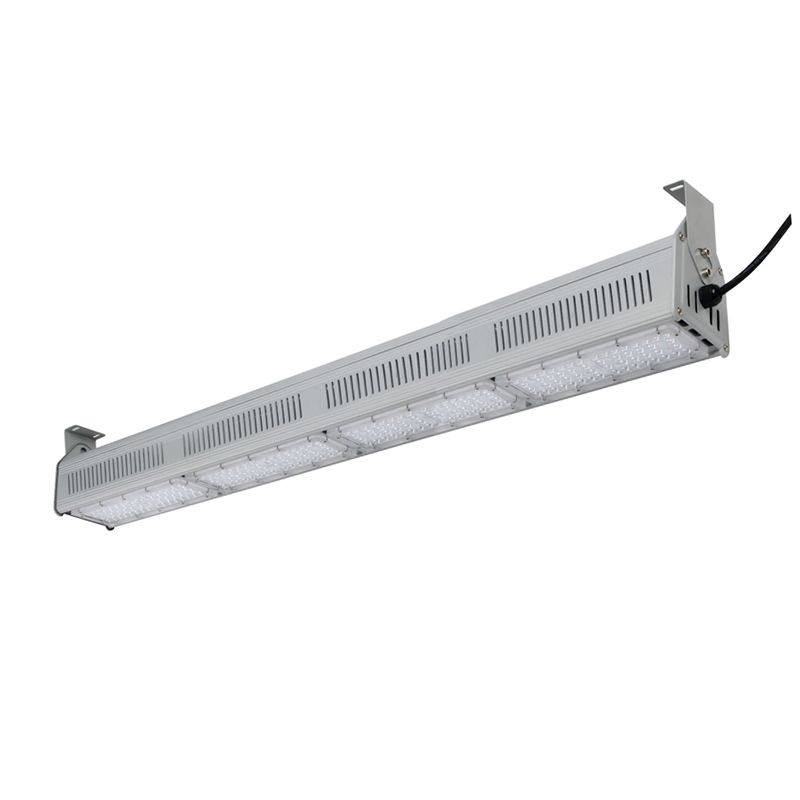

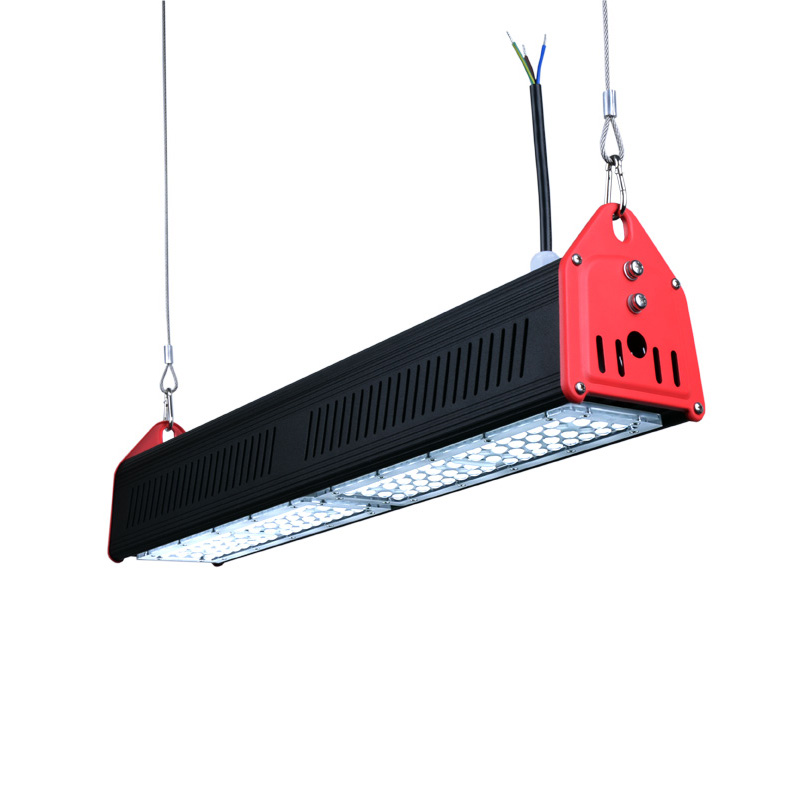

- Installation: Chain hanging style and Ceiling/Wall Mount (rotatable).
- 0-10V, PWM, DALI dimming options / Emergency available
- For Warehouses, Gyms, Super Markets, Public Places.
Applications
- Warehouse lighting
- Stadiums lighting
- Airport hall lighting
- Billboard lighting
- Gymnasiums lighting
- Assembly line lighting
- Gas station lighting
- Supermarket lighting
- Shopping mall lighting
- Manufacturing facilities lighting
Microwave Sensor / Dimming Function
Our Modular LED Linear High Bay is able to incorprate programable motion detector with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials. The sensors allow energy savings without compromising comfort. With its signature 3-step dimming function, it is perfect for use in areas that require a light change notice before totally switching off the light. Daylight (on/off) sensor is integrated for maximum energy saving
Modular Design

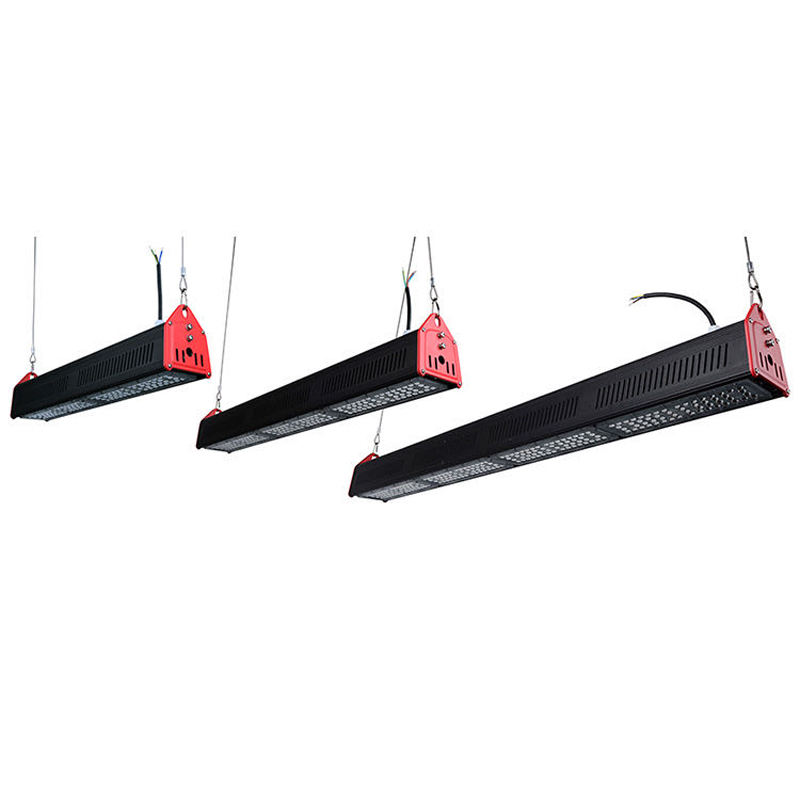

By adopting expandable modular design, the Module LED High Bay can be built-up to 10 modules with 500W maximum. It can be either single-row structure or dual-row structure, giving an adaptability of the fixture. The lightweight and customizable modules are featured with an IP65 & IK10 design, making it suitable for wet & damp locations.
The interchangeable LED modules are able to enable changing the fixture from smaller wattage outputs to large wattage outputs, which makes the fixture easy to assemble and significantly decreases maintenance cost.
Various Beam Angle Options:
Made of high quality PMMA lens, the Module High Bay has a wide rang of beam angle available:
60°/90°/60×120°/60×90°/30×70°/155×80°
