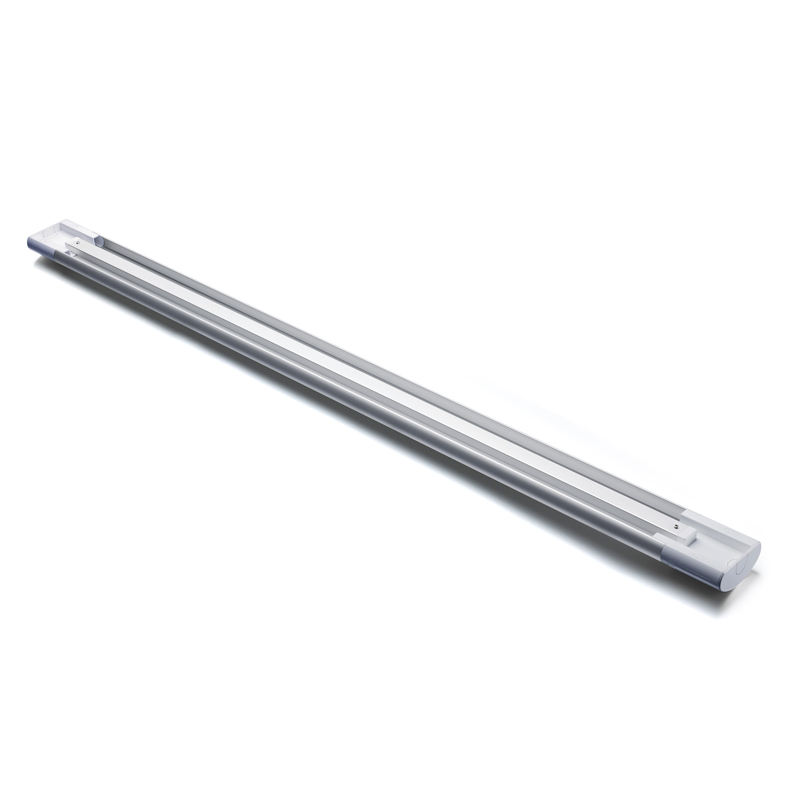

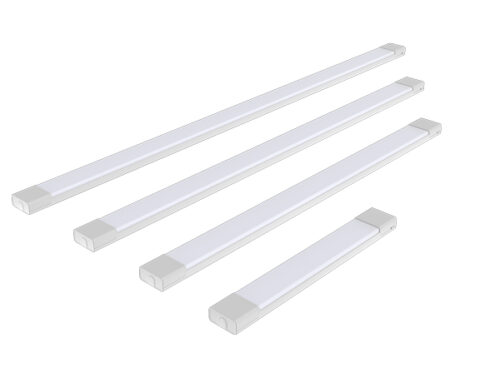

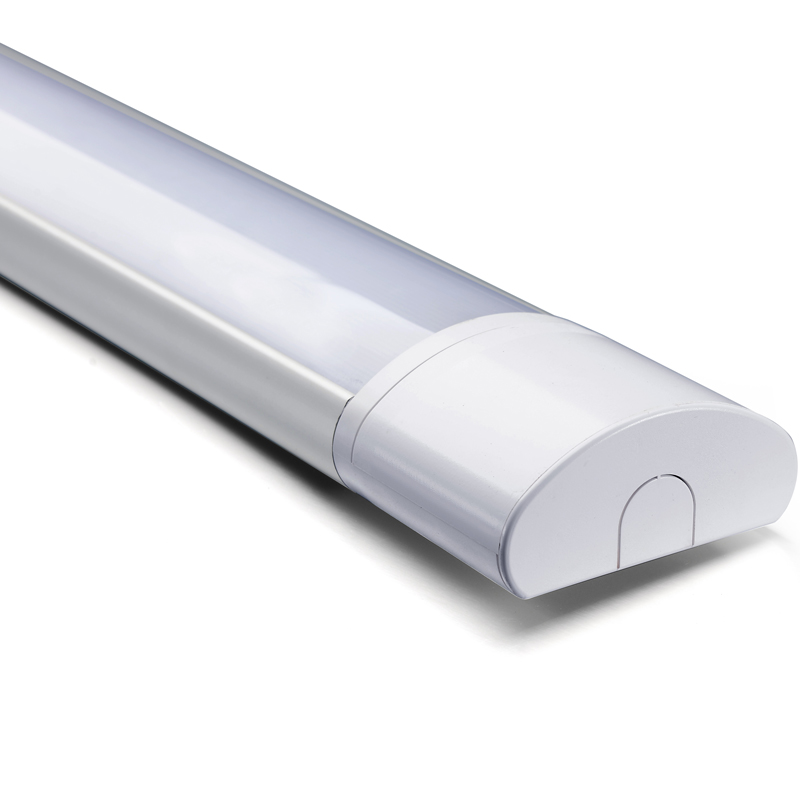

Microwave Motion Sensor LED Batten Light, CCT & Wattage Selectable LED Batten Fixture, 2ft/4ft/5ft/6ft Emergency LED Batten Light

Wattage: 20W/40W/60W/75W
Lumen: 100lm/W or 120lm/W
IP: IP42
Certificate: TUV SAA C-Tick CE RoHS CB
CCT: 3000k, 4000k, 5000k, 5700k, 6500k

LED Batten Light Specifications

Input voltage	AC200-240V 50/60Hz
LED Driver	Constant Current LED Driver (CE/TUV/UL/SAA)
PF	>0.9
THD	<15%
LED Type	2835 Lumileds/Epistar SMD LED
Colour Rendering Index	Ra>80
SCDM	<5
Colour Temperature	3000K, 4000K, 5000K, 5700K, 6000K, 6500K
Luminous Efficiency	120lm/W
Beam Angle	120°
Housing Material	Aluminum Heatsink & PC Cover
Installation	Suspension with chain / Surface mount with bracket
IP	IP42
Control Option	3CCT Selectable 3Power Selectable 3CCT + 3Power Selectable CCT+Motion Sensor+Remote Emergency
Working Temperature	-25℃~50℃
Certificate	TUV SAA C-Tick CE RoHS CB
Warranty	3-Year or 5-Year

Name	Model	Wattage	Lumen	Dimension	Weight
20W LED Batten Light	SO-BLH-600-20W	20W	2400LM	L590W80H36mm	0.5KG
40W LED Batten Light	SO-BLH-1200-40W	40W	4800LM	L1190W80H36mm	0.9KG
60W LED Batten Light	SO-BLH-1500-60W	60W	7200LM	L1490W80H36mm	1.0KG
75W LED Batten Light	SO-BLH-1800-75W	75W	9000LM	L1790W80H36mm	1.2KG

LED Batten Light Introduction

SuperONE Lighting latest BLH Series LED Batten Light Fixture is an IP42 linear light luminaire available in various styles, lengths and features a built-in CCT & Power changing switch. This LED fixture, with a slim body and modern finish, is ideal for indoor commercial, industrial and retail spaces where need different colour temperature and lumen output to suit the activity. For those retrofit projects, it provides an exceptionally efficient alternative to equivalent fluorescent fixtures.

Our LED Batten Light has many outstanding advantages for you:

Electrical
• Internal IEC approved constant current driver, flicker-free 200-240Vac or 100-277Vac
• Optional 0-10V dimming LED driver, Dims as low as 10%.
• Optional CCT & Power adjustable LED driver with DIP switches for retail market
Construction
• Extruded aluminum body to ensure superior heat dissipation and ensure long lasting lifetime.
• Anti-UV frosted PC cover with high transmittance delivers soft and comfortablelight.
• IP42 rating for indoor application
LED & Optical
• Long-life, high-efficiency SMD with LED 50,000-hour lifespan based on IES LM-80
• Overall efficacyup to 140 LPW
Mounting
• Surface Mounted directly on ceiling or with clips
• Suspension Mount Kits available
Additional Controls
• On/Off or Bi-Level Motion sensor
• Emergency battery backups.
Warranty
• 3-year Limited Warranty or 5-year Limited Warranty

SuperONE Lighting is a professional Motion Sensor LED Batten Light manufacturer, factory & supplier from China. We have been investing a lot in develping a full series of batten lights, and try to offer our customers with the most favorable prices and high-quality products. LED Batten Light is one of our main products. It’s designed to meet the industry standard with TUV SAA C-Tick CE RoHS CB certifications.

Applications

Hospitals
Food storage
Hotel
Warehouse
Factory
Assembly line
Supermarket
Shopping mall
Manufacturing facilities

Motion Sensor LED Batten Light Application

LED Batten Light Features

CCT & Power Adjustable LED Batten Light

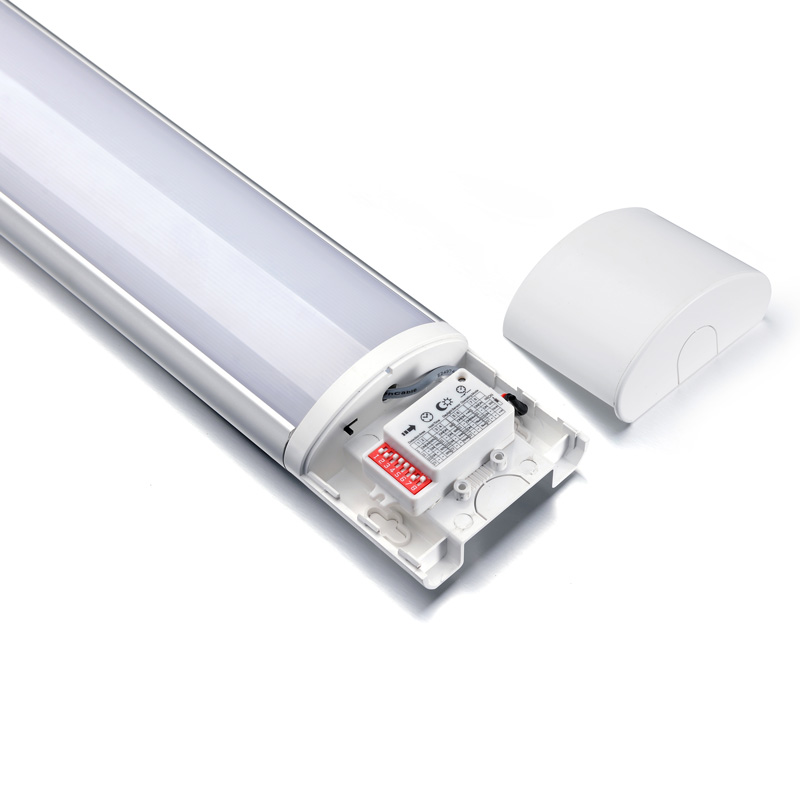

Our new LED batten fixture is able to equip with Power & CCT Adjustment Control by toggle switches, which are safely located inside the endcap in the housing. It’s with color temperature adjustable 3000K, 4000K and 5000K, and power adjustable with 30%, 50% and 100%. These field-adjustable LED batten fixtures allow customer to adjust the watts and CCT during installation. It helps lighting professionals and end customers to achieve the exact level and color of light required for their facility.
